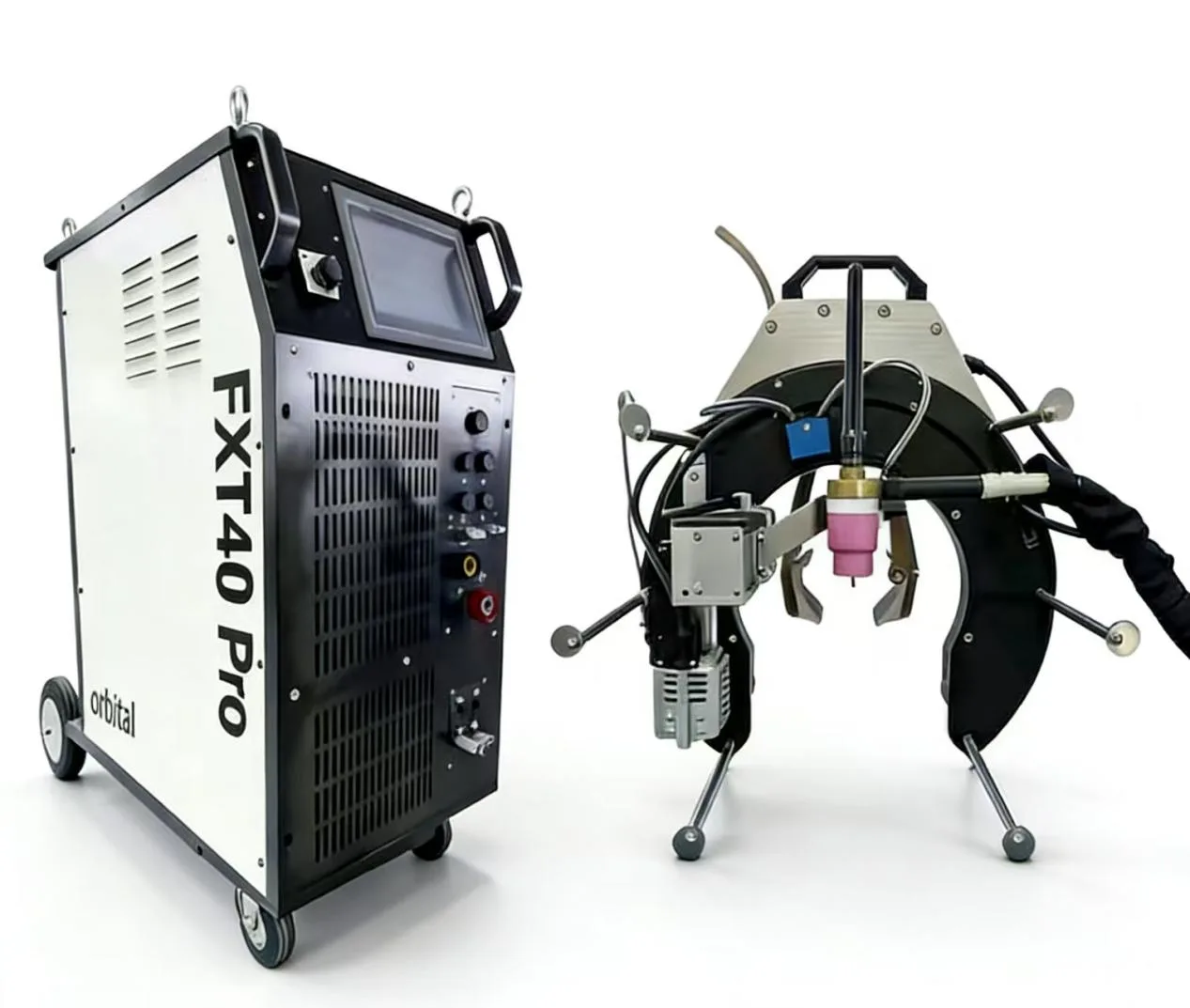

FYID-Feiyide FXT40 Pro 380V + K76 Orbital TIG Pipe Welding System

Specifications

Model

FXT40 Pro + K76

Power input

380 V three-phase, 50/60 Hz

Output current

10–400 A

Pipe outside diameter

20–76 mm

Standard wall thickness

2–10 mm

Supply, packaging & delivery

Production lead time

10 days

Ships from

China

Description

FXT40 Pro open-head orbital TIG pipe welding system with a standard three-phase 380 V power source and a K76 welding head. K76 pipe outside diameter 20–76 mm and standard wall thickness 2–10 mm. Custom wall thickness up to 20 mm requires project-specific technical review. Output current 10–400 A; duty cycle 400 A at 60% and 315 A at 100%. Air-cooled power source and water-cooled welding head. AVC arc-length control, OSC weaving and 50 recipe groups; automatic weld-seam tracking is unavailable. Parameter printing and USB parameter export are free options that must be specified before ordering. Standard host net weight 108 kg excluding cooling water; body dimensions 98 × 48 × 102 cm. These are host-only values, not complete-system shipment weight. Suitable for carbon-steel and stainless-steel pipe welding with filler wire. Standard factory dispatch 5–10 working days, subject to order, stock and schedule; international transit is additional. Supplied head, wire feeder and accessories follow the agreed quotation. Manufactured by Hubei Feiyide Intelligent Equipment Co., Ltd., Huanggang, Hubei, China. Configuration and price on request. Listed price is for FXT40 Pro 380V with K76. Other head configurations are quoted separately. Photograph is representative of the K-series system; supplied items follow the quotation.
