FYID-Feiyide FXT20 + C40 Enclosed Orbital TIG Tube Welding System

Specifications

Model

FXT20 + C40

Power input

220 V single-phase ±10%, 50/60 Hz

Output current

5–200 A

Tube outside diameter

6.35–38.1 mm

Wall thickness

0.5–2.5 mm

Supply, packaging & delivery

Production lead time

5 days

Ships from

China

Description

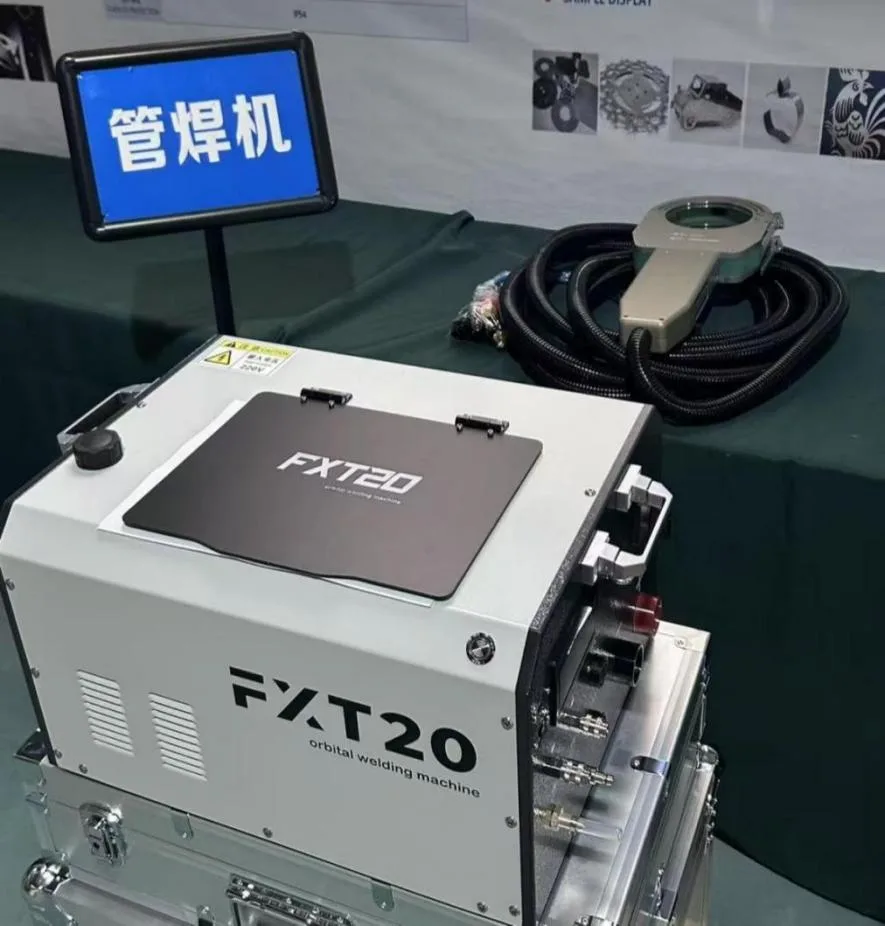

FXT20 power source paired with a C40 enclosed orbital TIG welding head. Standard tube outside diameter 6.35–38.1 mm and wall thickness 0.5–2.5 mm. Single-phase 220 V ±10%, 50/60 Hz, output current 5–200 A. The FXT20 power source is air-cooled and the C40 head is water-cooled. Parameter printing and USB parameter export are standard power-source capabilities, with available fields depending on software version. For thin-wall stainless-steel process tubing. Standard factory dispatch 3–5 working days, subject to stock, order and factory schedule; international transit is additional. Listed price is for FXT20 with C40. Photograph is representative of the C-series system; supplied head and accessories follow the quotation. Manufactured by Hubei Feiyide Intelligent Equipment Co., Ltd., Huanggang, Hubei, China.
